Powered train crosses Seattle’s floating bridge: how it works

Show summary Hide summary

• Why this crossing matters for Seattle and transit
• What makes floating bridges unique
• Homer M. Hadley Memorial Bridge: a brief look
• Engineering hurdles: powering a train on a floating structure
  • Key engineering issues
• How Sound Transit tested the new crossing
• Safety, monitoring, and maintenance steps
• What the 2 Line will bring to riders
• Broader implications for rail engineering worldwide

In a distinctive Pacific Northwest milestone, Seattle’s Link light rail became the first electrically powered train to travel across a floating bridge, crossing Lake Washington on the Homer M. Hadley Memorial Bridge under its own power. The run marks a technical and transit milestone, with big implications for commuters and rail engineers alike.

Why this crossing matters for Seattle and transit

Lake Washington separates Seattle from major job centers in Bellevue and Redmond. Traffic can be unpredictable. Commuters often face long drives during peak hours. The new Link connection aims to change that.

• Faster, more reliable trips for workers who cross the lake daily.
• Reduced pressure on I-90 traffic lanes.
• Direct rail access to tech campuses and downtown hubs.

What makes floating bridges unique

Floating bridges rest on hollow concrete pontoons instead of piers reaching the lake bed. They were first proposed more than a century ago. Seattle already hosts several pontoon spans.

Examples around the world include Norway’s Nordhordland Bridge and Japan’s Yumemai Bridge. Still, none of those previously carried electrically powered trains.

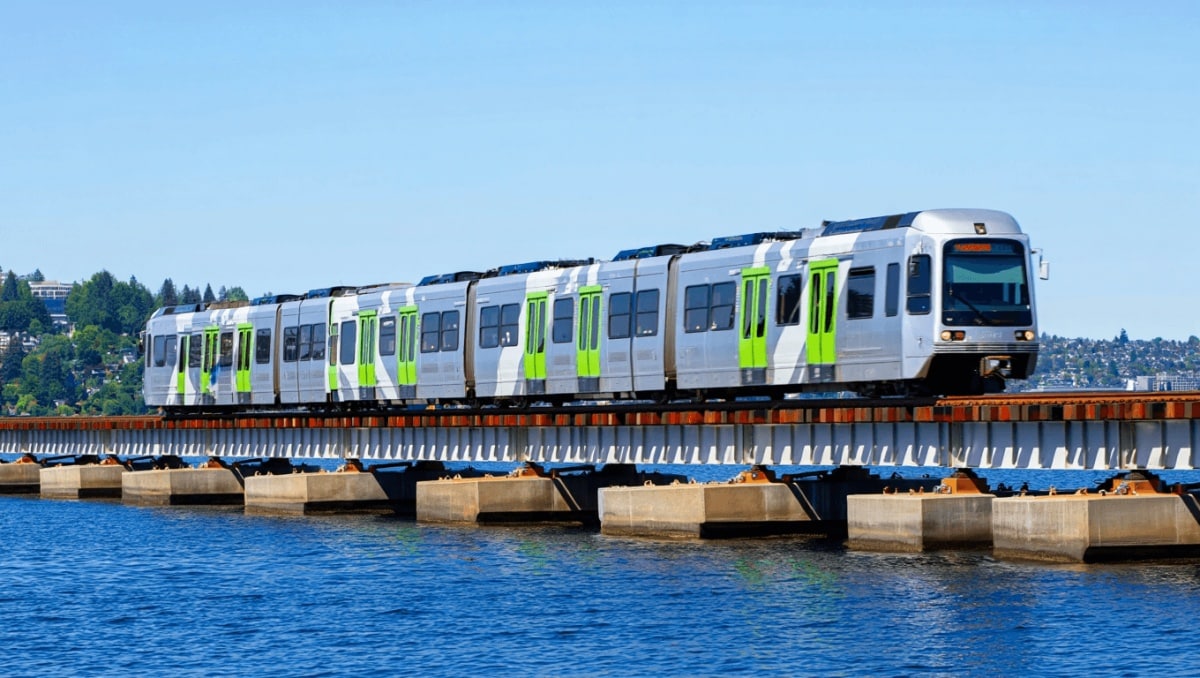

Homer M. Hadley Memorial Bridge: a brief look

Opened in 1989, the Homer M. Hadley Memorial Bridge carries westbound I-90 lanes. It now supports two new light rail tracks for Sound Transit’s expanding network. Engineers had to adapt the structure to host overhead wires and train loads.

Engineering hurdles: powering a train on a floating structure

Running an electric train on a floating bridge raises specific technical challenges. Movement, sway, and changing clearances all affect the overhead power delivery system.

Key engineering issues

• Maintaining consistent contact between the pantograph and overhead wire during motion.
• Designing track supports that tolerate the bridge’s vertical and lateral shifts.
• Ensuring safety systems account for changing geometry in rain and wind.

Overhead power stability is the most complex obstacle. Engineers must prevent arcing while the train and bridge move independently with water conditions.

How Sound Transit tested the new crossing

Testing followed a careful, staged plan. Teams ran a single light rail vehicle across the bridge many times.

1. Initial low-speed passes at roughly 5 mph to confirm basic systems.
2. Incremental speed increases while monitoring pantograph and catenary performance.
3. Night testing to observe electrical arcing in light rain and low visibility.

Speeds were raised until the train reached about 55 mph. Crews watched for expected arcing and adjusted equipment accordingly. Testing will continue through the fall and winter as the final stations are commissioned.

Safety, monitoring, and maintenance steps

To keep the service reliable, Sound Transit implemented new inspection routines and monitoring systems.

• Regular checks of overhead wire tension and alignment.
• Track plinth inspections to ensure stability on pontoons.
• Real-time sensors to detect unusual movement or electrical faults.

Redundancy and frequent inspections are crucial when trains run over a structure that floats on water.

What the 2 Line will bring to riders

Sound Transit’s 2 Line, sometimes called the Crosslake Connection, will link neighborhoods across Lake Washington. Ten of the line’s 12 stations are already open. Two key stops remain: Mercer Island and Judkins Park.

Once operational, the full line will:

• Provide a direct rail option between downtown Seattle and Eastside job centers.
• Cut commute times for thousands of daily travelers.
• Support regional growth with more transit capacity.

Broader implications for rail engineering worldwide

This successful powered crossing sets a precedent. Other regions with floating spans may now consider integrating rail. The Seattle test offers a blueprint for managing overhead power on moving structures.

Future projects can draw on Sound Transit’s testing protocols, sensor systems, and maintenance practices. The lessons learned here could change how engineers approach waterfront transit links.
